M20 Series
Ultra-High-Efficiency Inverter Central AC
| Capacity range | 24,000 – 60,000 BTU |
|---|---|
| Refrigerant | R410A |
| Outdoor Technology | Inverter |
| Efficiency (SEER2) | Up to 20 SEER2 |
| Certification | AHRI-rated combinations / ETL listed |
| Voltage | 208/230V |
| Phase | 1 Phase |
| Frequency | 60 Hz |
| Models | 2 |
OVERVIEW
The Midea M20 Series is an ultra-high-efficiency inverter central air conditioner rated up to 20.0 SEER2, with a GMCC DC inverter rotary compressor and 36 to 130% capacity modulation. Two outdoor units cover 2, 3, 4 and 5 ton applications, using R410A refrigerant.
KEY FEATURES
- Up to 20.0 SEER2
- 36–130% capacity modulation in 1% increments
- GMCC DC inverter rotary compressor
- Two outdoor units cover 2, 3, 4 and 5-ton applications
- Non-proprietary 24V controls, compatible with standard thermostats, zoning and properly selected Midea or other-brand indoor equipment
ADDITIONAL TECHNICAL FEATURES
- Indoor equipment requires TXV or compatible EXV metering
- As quiet as 56 dBA at low cooling demand
- Cabinet footprint: 29-1/8" × 29-1/8"
- Variable-speed/DC condenser fan
- Extended Cooling capability
- Copper-tube/aluminum-fin condenser coil
- Electronic inverter control board and system protection
- Powder-painted galvanized-steel cabinet
- R410A refrigerant
- Maximum line-set length: 150 ft
- 208/230V • 1 Phase • 60 Hz
- AHRI-rated combinations / ETL listed
- Warranty (from the brochure): 5-year compressor / 1-year parts limited warranty
AVAILABLE MODELS
| Model Number | Series | Factory Set For | Can Be Adjusted To | Capacity Filter Values |
|---|---|---|---|---|
| MOVA-36CDN1-M20G | M20 | 3 Ton | 2 Ton | 2 Ton and 3 Ton |
| MOVA-60CDN1-M20G | M20 | 5 Ton | 4 Ton | 4 Ton and 5 Ton |
DOCUMENTS & DOWNLOADS
-

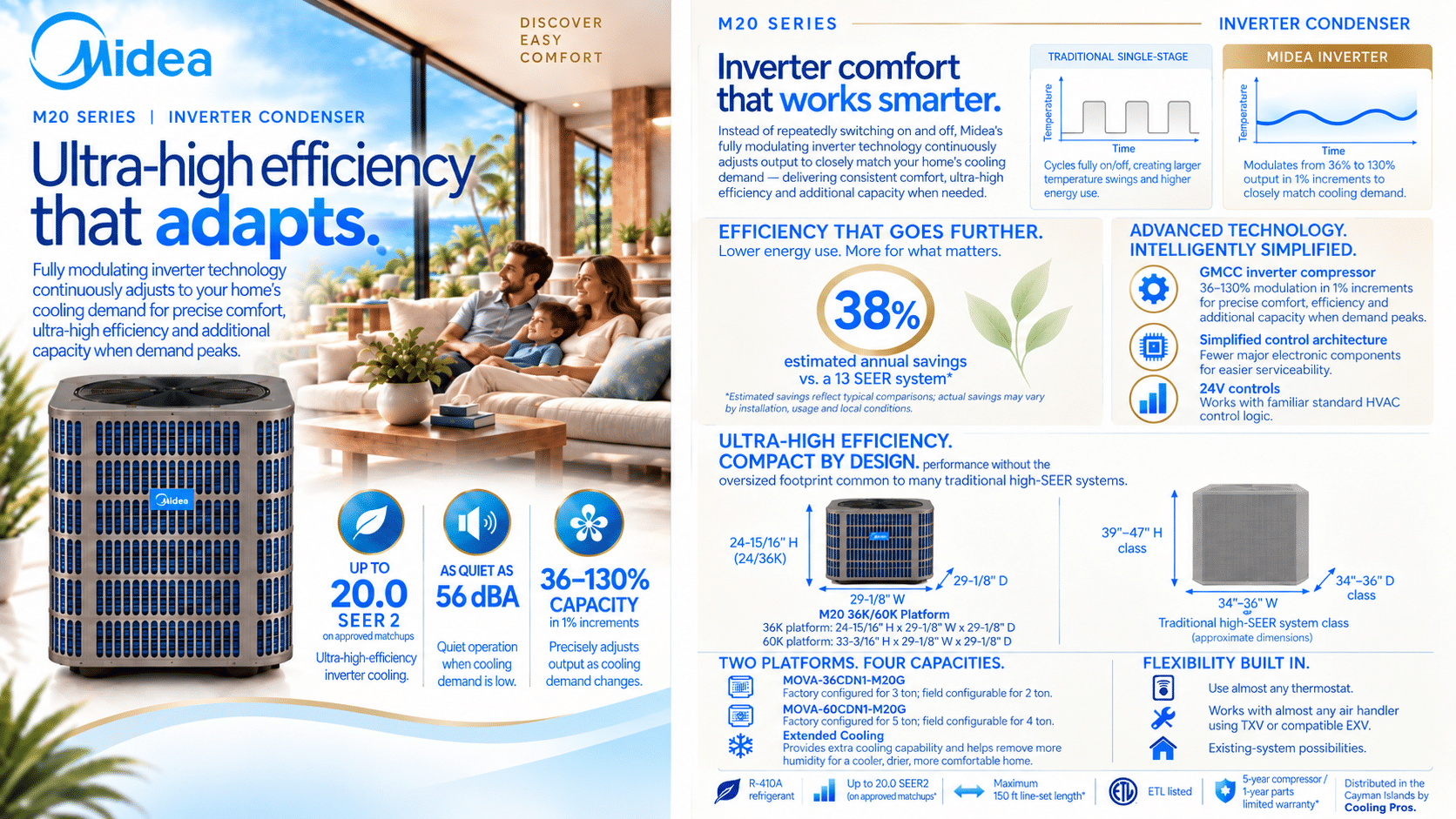

Brochure
-
Installation Manual
-
Submittal
4 of 7 document types: Product Specification, AHRI Certificate, Engineering Data and Warranty have no file for this product, so those rows do not render.
