Mission Xtreme CC
Wall-Mounted Inverter Mini Split
| Capacity range | 12,000 BTU |
|---|---|
| Refrigerant | R32 |
| Outdoor Technology | Inverter |
| Efficiency (SEER2) | Up to 22 SEER |
| Certification | AHRI certified / ETL listed |
| Voltage | 115V and 208/230V 12K |
OVERVIEW

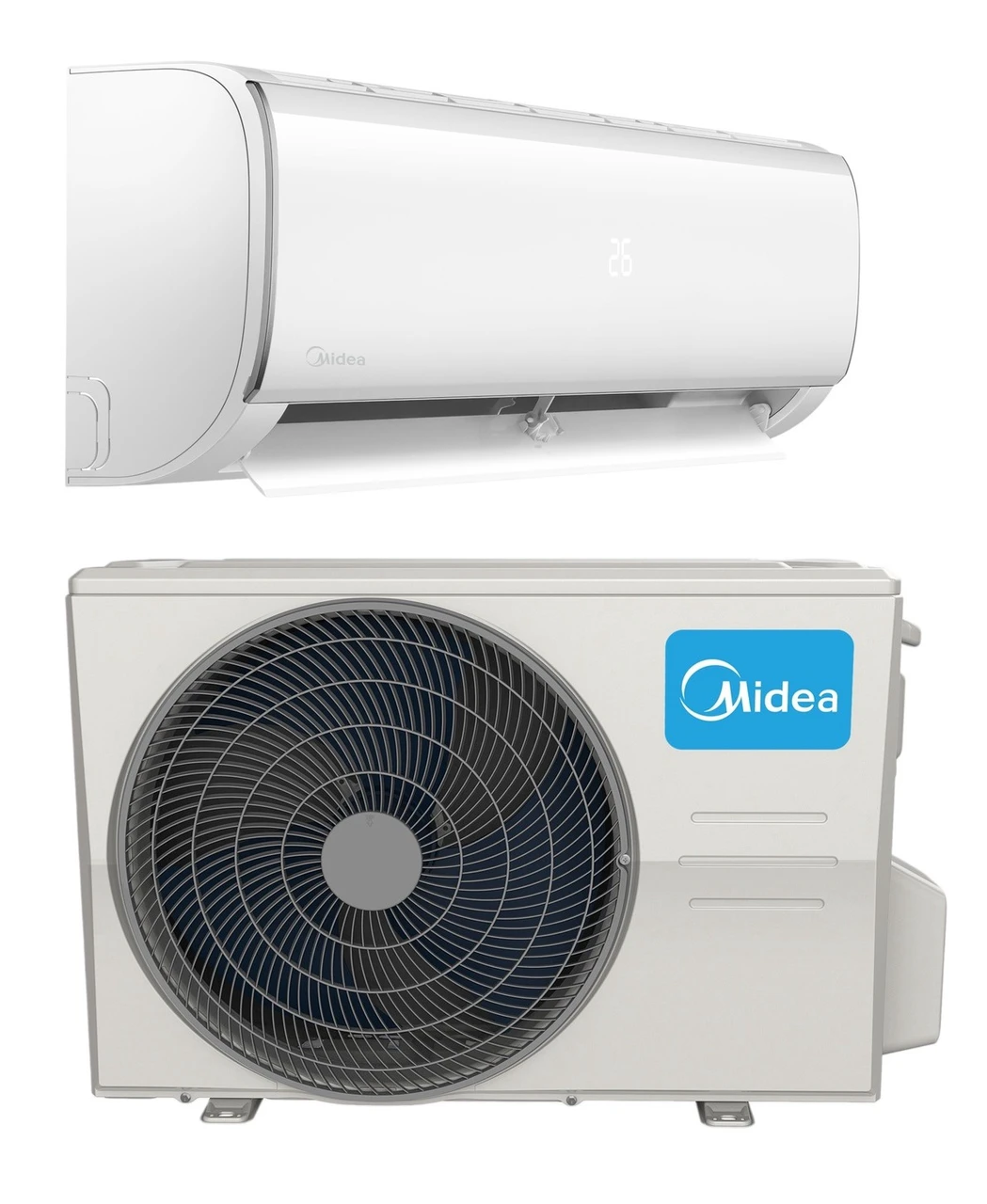

The Midea Mission Xtreme is a wall-mounted inverter mini split rated up to 22 SEER, with Eco, Boost and Silent modes and Follow Me temperature control. It uses R32 refrigerant.
KEY FEATURES
- DC inverter rotary compressor
- Up to 22 SEER
- Very quiet operation
- Eco Mode, Boost Mode and Silent Operation
- Follow Me temperature control
ADDITIONAL TECHNICAL FEATURES
-
Indoor sound:
- 12K–24K: approximately 33 dBA on low fan
- 36K: approximately 38 dBA on low fan
- Outdoor sound: approximately 53–60 dBA depending on capacity
-
Maximum line-set length:
- 12K: 82 ft
- 18K–24K: 98 ft
- 36K: 164 ft
- R32 refrigerant
- 115V and 208/230V 12K models available
- 18K–36K: 208/230V
- Anti-corrosion PCB treatment
- Stainless-steel hardware
- AHRI certified / ETL listed
DOCUMENTS & DOWNLOADS
-
Installation Manual
6 of 7 document types: Product Specification, Brochure, Submittal, AHRI Certificate, Engineering Data and Warranty have no file for this product, so those rows do not render.
