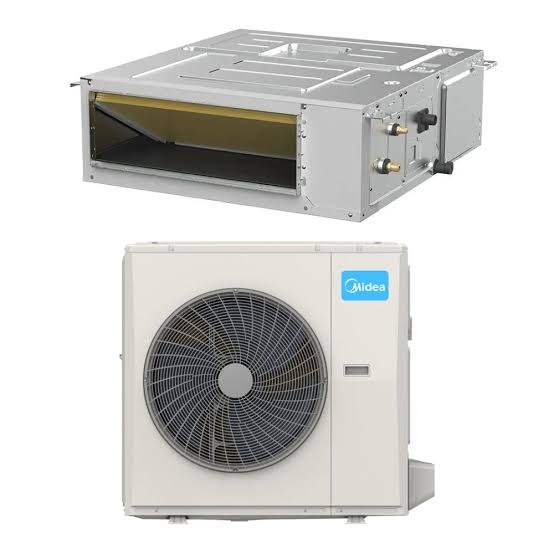

MTJ Series
Single-Zone Concealed Ducted Inverter
| Capacity range | 12,000 – 60,000 BTU |
|---|---|
| Refrigerant | R454B |
| Outdoor Technology | Inverter |
| Efficiency (SEER2) | Up to 20 SEER2 |
| Static pressure | 0.8 in. w.c. / 200 Pa across all models |
| Certification | AHRI certified / ETL listed |
| Voltage | 208/230V |
| Phase | 1 Phase |
| Frequency | 60 Hz |
OVERVIEW
The Midea MTJ Series is a single-zone concealed ducted inverter system rated up to 20 SEER2, providing cooling and heating from one system. It is available from 12,000 to 60,000 BTU and uses R454B refrigerant.
KEY FEATURES
- Single-zone concealed ducted inverter system
- Up to 20 SEER2
- DC inverter rotary compressor
- Maximum external static pressure: 0.8 in. w.c. / 200 Pa across all models
- Low-profile indoor unit with horizontal or vertical installation
ADDITIONAL TECHNICAL FEATURES
- Cooling and heating from one system
-
Indoor-unit height:
- 12K–24K: 9.6"
- 36K–48K: 11.8"
- 60K: 13.0"
- Rear or bottom return-air configuration when horizontally mounted
- Gravity drain or condensate-pump drainage options
-
Maximum line-set length:
- 12K: 82 ft
- 18K: 98.4 ft
- 24K: 164 ft
- 36K–60K: 246 ft
- R454B refrigerant
- 208/230V • 1 Phase • 60 Hz
- AHRI certified / ETL listed
DOCUMENTS & DOWNLOADS
-
Installation Manual MTJ Series, all models
