MVMP Series
PSC Multi-Position Air Handler
| Capacity range | 18,000 – 60,000 BTU |
|---|---|
| Static pressure | 1.5–3 Ton - 0.6 in. w.c., 4 Ton - 0.7 in. w.c, 5 Ton - 0.8 in. w.c |
| Indoor Motor | PSC |
| Indoor Control | Single Stage |
| Installation Position | Downflow, Horizontal Left, Horizontal Right, Upflow |
| Metering Device | Orifice |
| Certification | AHRI listed / ETL certified |
| Voltage | 208/230V |
| Phase | 1 Phase |
| Frequency | 60 Hz |
OVERVIEW

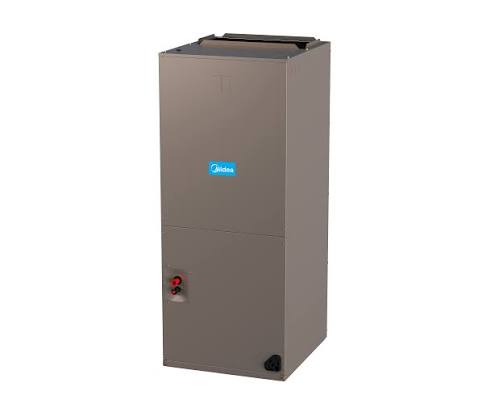

The Midea MVMP Series is a multi-position air handler with a PSC multi-speed blower motor and factory piston metering. It is available from 1.5 to 5 tons.
KEY FEATURES
- PSC multi-speed blower motor
- Factory piston/orifice metering
- Non-proprietary compatibility with properly matched Midea or other-brand outdoor equipment
- Multi-position installation: upflow, downflow, horizontal left or horizontal right
- Available from 1.5 to 5 tons
ADDITIONAL TECHNICAL FEATURES
-
Maximum external static pressure:
- 1.5–3 ton: 0.6 in. w.c.
- 4 ton: 0.7 in. w.c.
- 5 ton: 0.8 in. w.c.
- All-aluminum tube-and-fin evaporator coil
- Factory-sealed cabinet rated at 2% or less air leakage at 1.0 in. w.c.
- 208/230V • 1 Phase • 60 Hz
- AHRI listed / ETL certified
