M18 Series
High-Efficiency Inverter Central AC
| Capacity range | 24,000 – 60,000 BTU |
|---|---|
| Refrigerant | R410A |
| Outdoor Technology | Inverter |
| Efficiency (SEER2) | Up to 17.5 SEER2 |
| Certification | AHRI-rated combinations / ETL listed |
| Voltage | 208/230V |
| Phase | 1 Phase |
| Frequency | 60 Hz |
| Models | 2 |
OVERVIEW

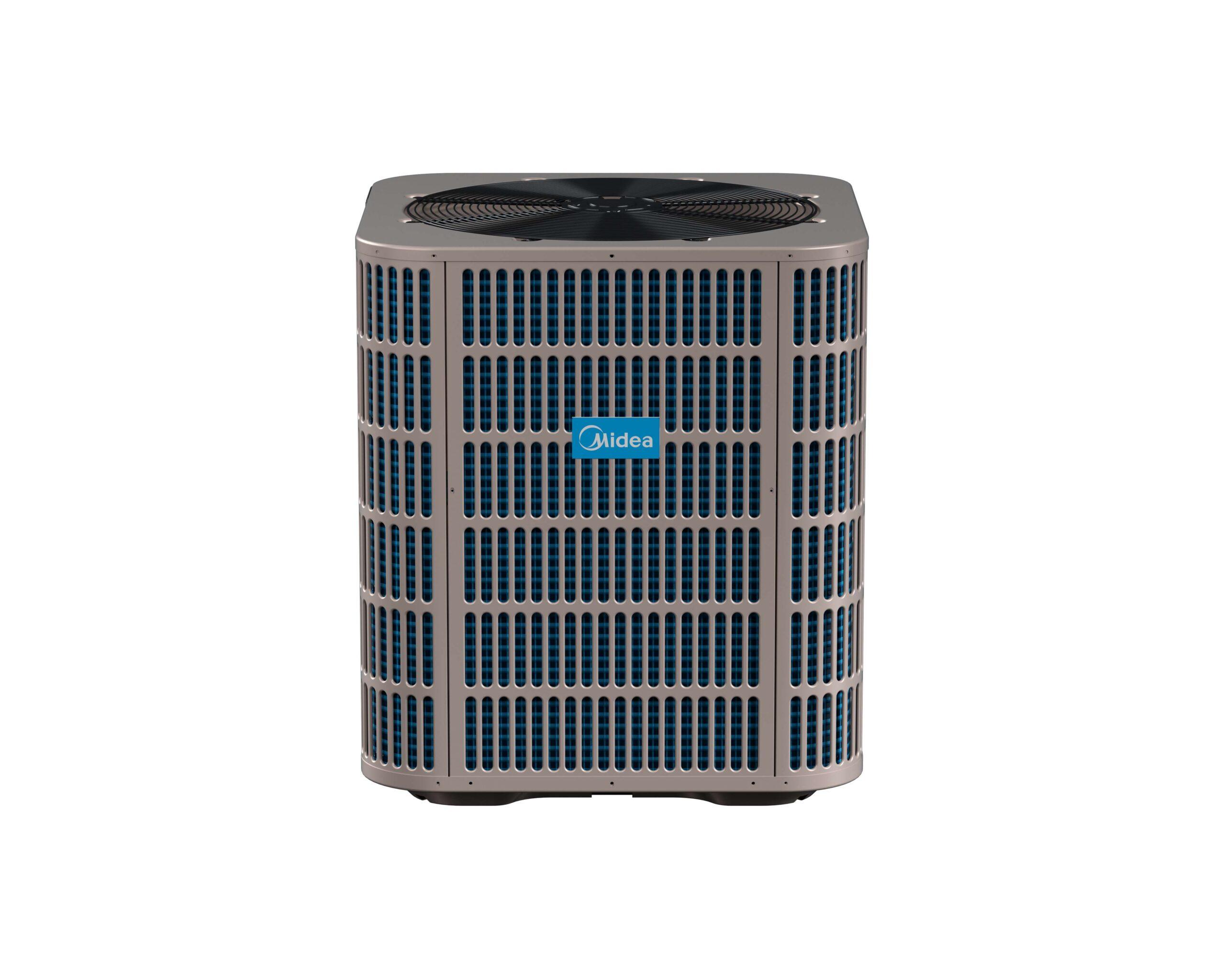

The Midea M18 Series is a high-efficiency inverter central air conditioner rated up to 17.5 SEER2, with a Mitsubishi DC inverter rotary compressor and 26 to 110% capacity modulation. Two outdoor units cover 2, 3, 4 and 5 ton applications, using R410A refrigerant.
KEY FEATURES
- Up to 17.5 SEER2
- Mitsubishi DC inverter rotary compressor
- 26–110% capacity modulation in 1% increments
- Two outdoor units cover 2, 3, 4 and 5-ton applications
- Non-proprietary 24V controls, compatible with standard thermostats, zoning and properly selected Midea or other-brand indoor equipment
ADDITIONAL TECHNICAL FEATURES
- Indoor equipment requires TXV or compatible EXV metering
- As quiet as 56 dBA at low cooling demand
- Outdoor sound power: 64 dB(A) on 2/3-ton platform; 67 dB(A) on 4/5-ton platform
- Cabinet footprint: 29-1/8" × 29-1/8"
- PSC condenser fan: 2/3-ton platform
- ECM condenser fan: 4/5-ton platform
- Extended Cooling capability
- Copper-tube/aluminum-fin condenser coil
- Electronic inverter control board and system protection
- Powder-painted galvanized-steel cabinet
- R410A refrigerant
- Maximum line-set length: 100 ft
- 208/230V • 1 Phase • 60 Hz
- AHRI-rated combinations / ETL listed
- Warranty (from the brochure): 5-year compressor / 1-year parts limited warranty
AVAILABLE MODELS
| Model Number | Series | Factory Set For | Can Be Adjusted To | Capacity Filter Values |
|---|---|---|---|---|
| MOVB-24CDN1-M18M | M18 | 2 Ton | 3 Ton | 2 Ton and 3 Ton |
| MOVB-48CDN1-M18M | M18 | 4 Ton | 5 Ton | 4 Ton and 5 Ton |
DOCUMENTS & DOWNLOADS
-

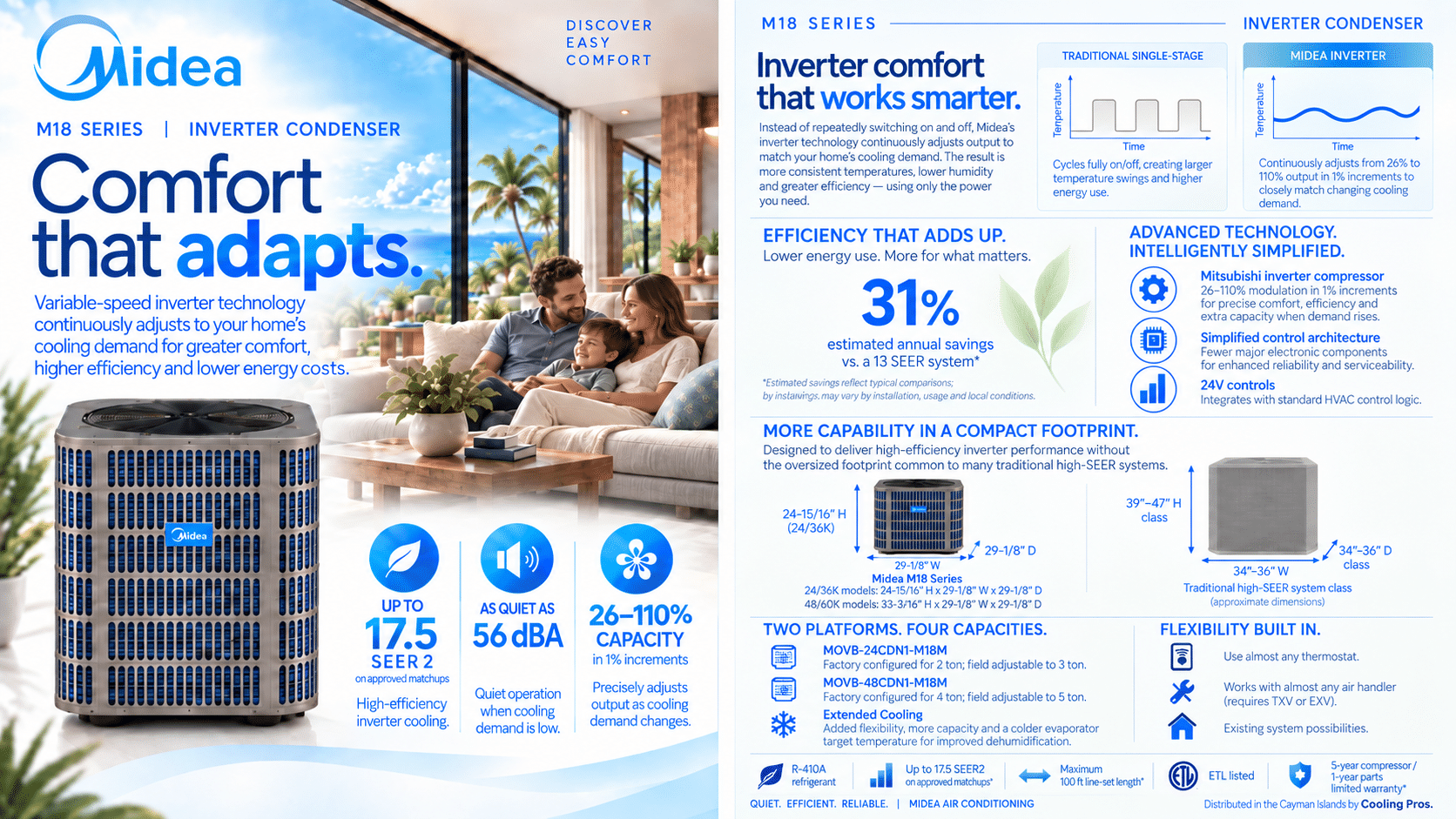

Brochure
-
Installation Manual
-
Submittal
4 of 7 document types: Product Specification, AHRI Certificate, Engineering Data and Warranty have no file for this product, so those rows do not render.
